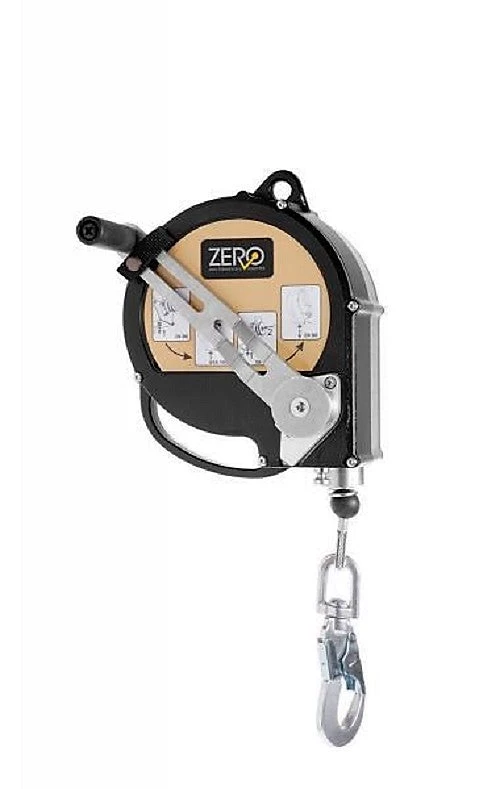

Zero Blocmarx1 Retractable Type 3 Rescue Winch/Inertia Reel 15 Mtr

Type 3 Fall Arrester

A retractable type fall arrester including rescue lifting device. The device is equipped with hand operated winch with automatic brake which prevents self-activated descent of a person. Combination of a self-locking, self retracting lifeline device with a rescue winch lifting overide option. Simple operation for effective height safety and fall arrest, particularly in confined space access.
Can be used both in vertical arrangement (suspended to an overhead structure) or installed on confined space tripods. Type 3 fall arrester. Important motional components are within a sealed chamber within.
Braking force; less than 6kN
Static strength; not less than 14kN
Housing made of high-strength aluminium alloy
Galvanized steel cable
Cable length 15 metres
Manual winch with lifting and lowering function.
Can be used alone or with a mounting bracket to fit to TM9, TM11, TM12 and TM12/2 Confined Space Tripods.
Safe working reflction from vertical 40 degrees
Safe operating tempature -30 to +50 degrees C
Rated to 140kg
Weight: 11kg
